Products
Steel Coil & Sheet
Custom Steel Processing & Fabricated Parts
CanHope Steel’s processing plant turns steel coil into cold-formed and fabricated parts for steel structures, warehouses and industrial projects: C and Z purlins, floor deck, roof and wall panels, and parts made to your drawings. Send your drawings or BOQ for a quotation.
What We Make

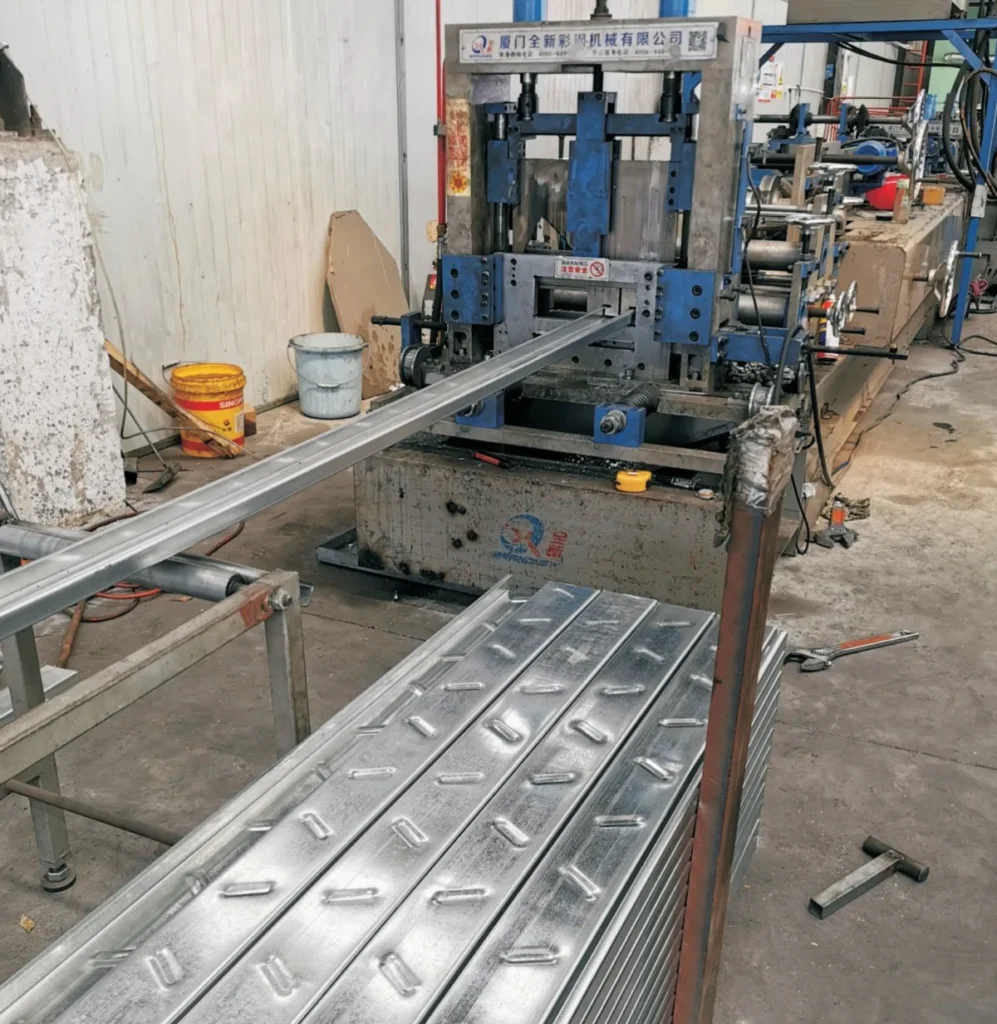

C & Z Purlins
Cold-formed C and Z purlins for roof and wall framing. See the typical size tables below.

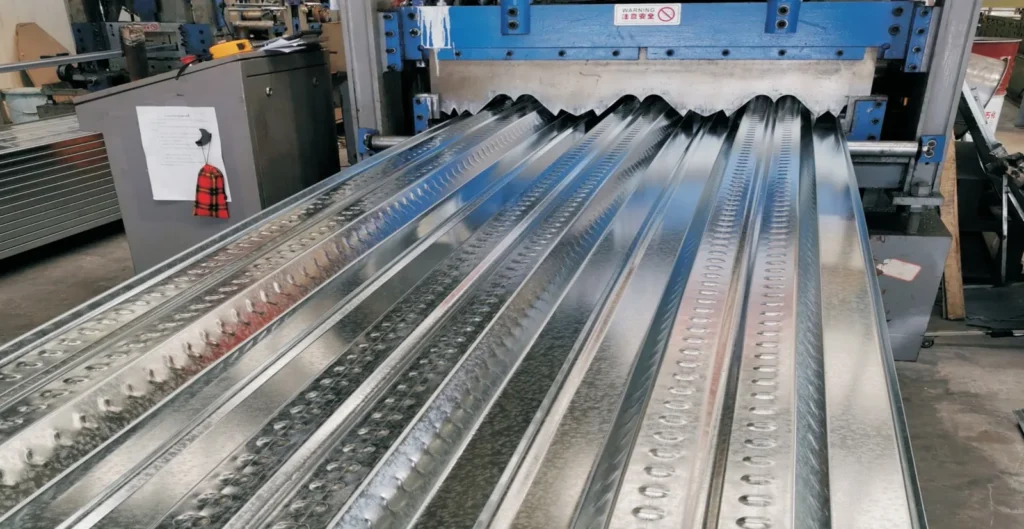

Steel Floor Deck
Galvanized steel floor deck and composite floor deck (pressure plate series) for floor slabs.

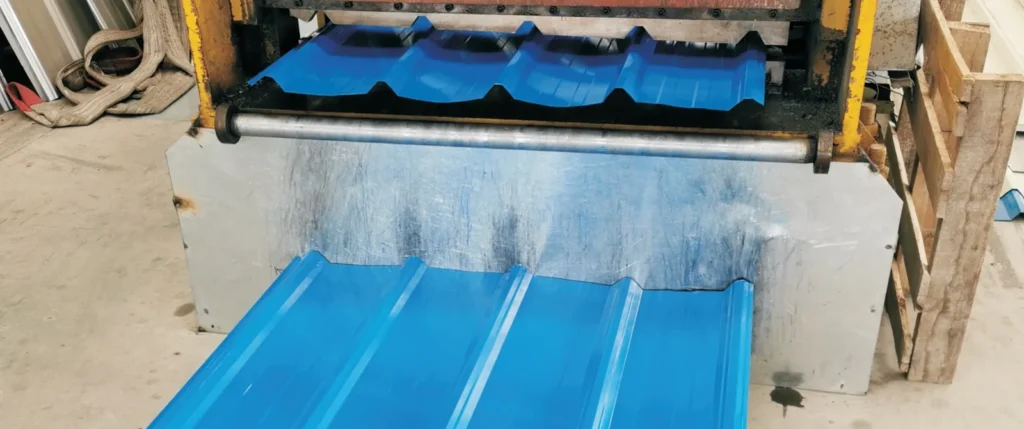

Roof & Wall Panels
Corrugated and trapezoidal roof and wall panels in galvanized or color-coated steel.
Sandwich Panels & Roof Tiles
Sandwich panels, rock wool boards, heat shield panels, glazed tiles and roofing accessories.
Purlin Accessories
Purlin brackets, tie rods and anchor bolts to complete the purlin system.
Made-to-Drawing Parts
Cut, bent, punched, drilled and welded steel components, and flange prefabrication, made to your drawings.
Processing Capabilities
- Roll forming of purlins, floor deck and roof/wall panels

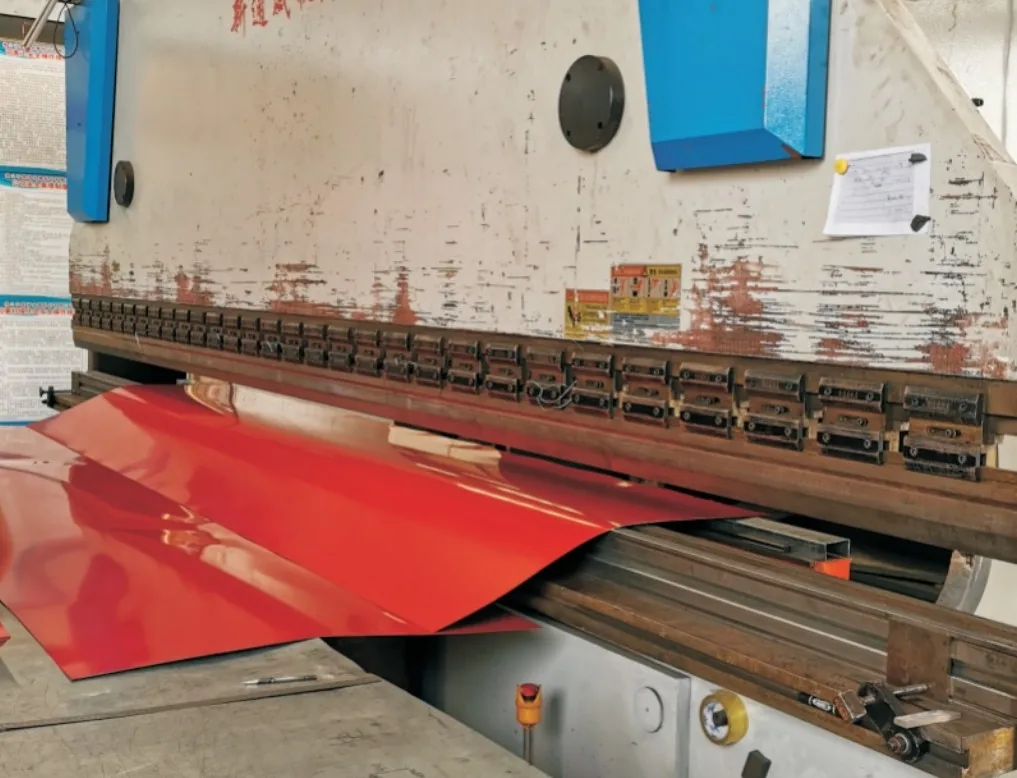

- CNC bending, punching, drilling and welding

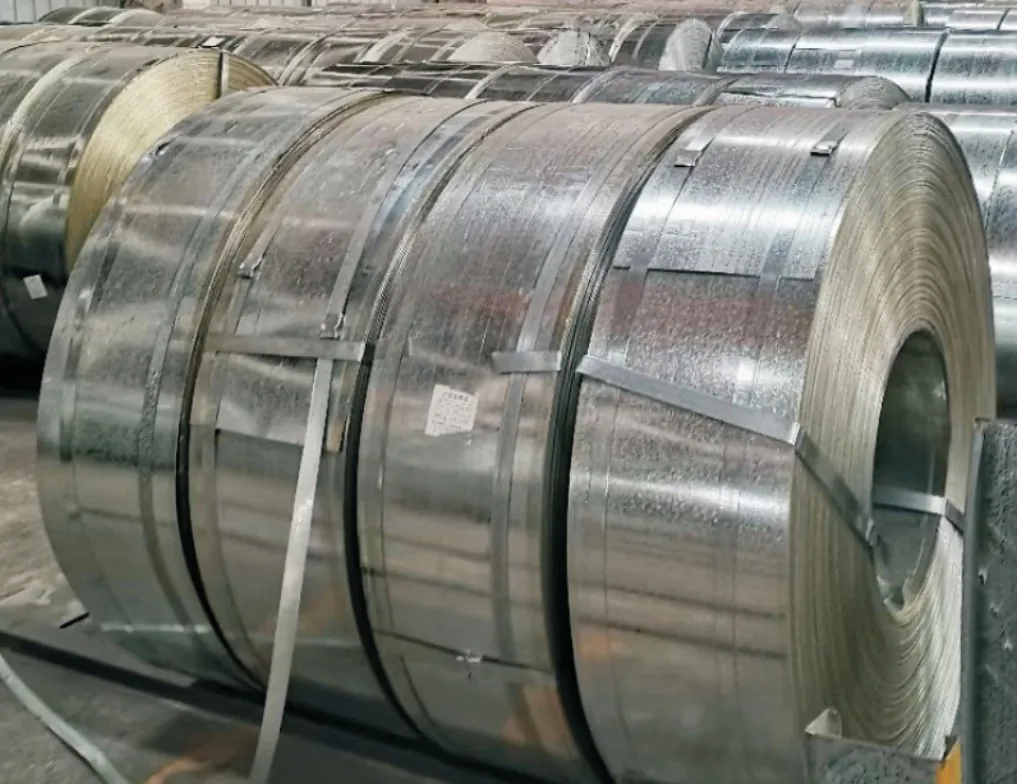

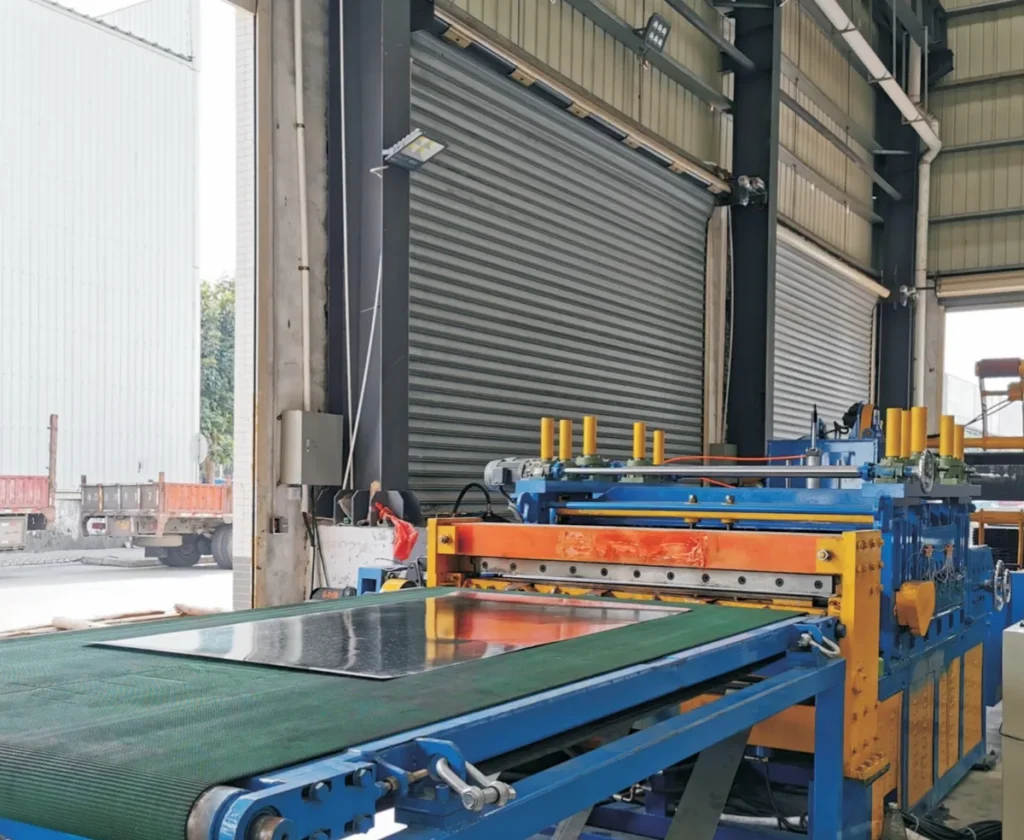

- Coil slitting, sheet leveling and cut-to-length
- Made-to-drawing fabrication and flange prefabrication
Contact us for profile drawings, specifications and processing limits.
C Purlin Sizes (Typical)
| Model | H | B | A | T | Strip width (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| 8# | 80 | 30 | 12 | 1.2 | 147 | 1.385 |
| 80 | 30 | 12 | 1.5 | 147 | 1.731 | |
| 80 | 30 | 12 | 1.7 | 147 | 1.962 | |
| 12# | 120 | 40 | 18 | 2.0 | 204 | 3.203 |
| 14# | 140 | 50 | 20 | 2.0 | 255 | 4.004 |
| 140 | 60 | 20 | 2.0 | 275 | 4.318 | |
| 140 | 70 | 20 | 2.0 | 295 | 4.632 | |
| 140 | 50 | 20 | 2.5 | 255 | 5.005 | |
| 140 | 60 | 20 | 2.5 | 275 | 5.397 | |
| 140 | 70 | 20 | 2.5 | 295 | 5.79 | |
| 16# | 160 | 60 | 20 | 2.0 | 295 | 4.632 |
| 160 | 70 | 20 | 2.0 | 315 | 4.946 | |
| 160 | 80 | 20 | 2.0 | 335 | 5.26 | |
| 160 | 60 | 20 | 2.5 | 295 | 5.79 | |
| 160 | 70 | 20 | 2.5 | 315 | 6.182 | |
| 18# | 180 | 60 | 20 | 2.0 | 315 | 4.946 |
| 180 | 70 | 20 | 2.0 | 335 | 5.26 | |
| 180 | 80 | 20 | 2.0 | 355 | 5.574 | |
| 180 | 60 | 20 | 2.5 | 315 | 6.182 | |
| 180 | 70 | 20 | 2.5 | 335 | 6.575 | |
| 180 | 80 | 20 | 2.5 | 355 | 6.967 | |
| 20# | 200 | 60 | 20 | 2.0 | 335 | 5.26 |
| 200 | 70 | 20 | 2.0 | 355 | 5.574 | |
| 200 | 80 | 20 | 2.0 | 375 | 5.888 | |
| 200 | 60 | 20 | 2.5 | 335 | 6.575 | |
| 200 | 70 | 20 | 2.5 | 355 | 6.967 | |
| 200 | 80 | 20 | 2.5 | 375 | 7.36 | |
| 22# | 220 | 70 | 20 | 2.0 | 375 | 5.888 |
| 220 | 75 | 20 | 2.0 | 385 | 6.045 | |
| 220 | 70 | 20 | 2.5 | 375 | 7.36 | |
| 220 | 75 | 20 | 2.5 | 385 | 7.556 | |
| 25# | 250 | 75 | 20 | 2.0 | 415 | 6.516 |
| 250 | 75 | 20 | 2.5 | 415 | 8.145 | |
| 250 | 75 | 20 | 2.75 | 415 | 8.959 | |
| 250 | 75 | 20 | 3.0 | 415 | 9.774 | |
| 30# | 300 | 75 | 20 | 2.0 | 465 | 7.301 |
| 300 | 80 | 20 | 2.5 | 475 | 9.322 | |
| 300 | 75 | 20 | 2.75 | 465 | 10.04 | |
| 300 | 80 | 20 | 3.0 | 475 | 11.19 |
Typical sizes for reference. Dimensions in mm: H = web height, B = flange width, A = lip, T = thickness. Weight = strip width × thickness × 0.00785. Contact us to confirm the size, material and coating you need.
Z Purlin Sizes (Typical)
| Model | H | B | A | T | Strip width (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| 14# | 140 | 50 | 20 | 2.0 | 255 | 4.004 |
| 140 | 60 | 20 | 2.0 | 275 | 4.318 | |
| 140 | 70 | 20 | 2.0 | 295 | 4.632 | |
| 140 | 50 | 20 | 2.5 | 255 | 5.005 | |
| 140 | 60 | 20 | 2.5 | 275 | 5.397 | |
| 140 | 70 | 20 | 2.5 | 295 | 5.79 | |
| 16# | 160 | 60 | 20 | 2.0 | 295 | 4.632 |
| 160 | 70 | 20 | 2.0 | 315 | 4.946 | |
| 160 | 80 | 20 | 2.0 | 335 | 5.26 | |
| 160 | 60 | 20 | 2.5 | 295 | 5.79 | |
| 160 | 70 | 20 | 2.5 | 315 | 6.182 | |
| 18# | 180 | 60 | 20 | 2.0 | 315 | 4.946 |
| 180 | 70 | 20 | 2.0 | 335 | 5.26 | |
| 180 | 80 | 20 | 2.0 | 355 | 5.574 | |
| 180 | 60 | 20 | 2.5 | 315 | 6.182 | |
| 180 | 70 | 20 | 2.5 | 335 | 6.575 | |
| 180 | 80 | 20 | 2.5 | 355 | 6.967 | |
| 20# | 200 | 60 | 20 | 2.0 | 335 | 5.26 |
| 200 | 70 | 20 | 2.0 | 355 | 5.574 | |
| 200 | 80 | 20 | 2.0 | 375 | 5.888 | |
| 200 | 60 | 20 | 2.5 | 335 | 6.575 | |
| 200 | 70 | 20 | 2.5 | 355 | 6.967 | |
| 200 | 80 | 20 | 2.5 | 375 | 7.36 | |
| 22# | 220 | 70 | 20 | 2.0 | 375 | 5.888 |
| 220 | 75 | 20 | 2.0 | 385 | 6.045 | |
| 220 | 70 | 20 | 2.5 | 375 | 7.36 | |
| 220 | 75 | 20 | 2.5 | 385 | 7.556 | |
| 25# | 250 | 75 | 20 | 2.0 | 415 | 6.516 |
| 250 | 75 | 20 | 2.5 | 415 | 8.145 | |
| 250 | 75 | 20 | 2.75 | 415 | 8.959 | |
| 250 | 75 | 20 | 3.0 | 415 | 9.774 | |
| 30# | 300 | 75 | 20 | 2.0 | 465 | 7.301 |
| 300 | 80 | 20 | 2.5 | 475 | 9.322 | |
| 300 | 75 | 20 | 2.75 | 465 | 10.04 | |
| 300 | 80 | 20 | 3.0 | 475 | 11.19 |
Typical sizes for reference. Dimensions in mm: H = web height, B = flange width, A = lip, T = thickness. Weight = strip width × thickness × 0.00785. Contact us to confirm the size, material and coating you need.
Floor Deck, Roof Panels & Sandwich Panels
Floor deck (including composite floor deck), corrugated and trapezoidal roof and wall panels, sandwich panels and glazed tiles are produced in a range of profiles. Contact us for profile drawings and specifications.
Applications
- Industrial buildings and warehouses
- Commercial complexes and steel structure systems
- Roofing and wall cladding
- Floor slabs with steel floor deck
Frequently Asked Questions
Can you make steel parts to my drawing?
Yes. Cutting, bending, punching, drilling and welding can be done to your drawings. Send DWG or PDF drawings with quantities for a quotation.
Which purlin sizes are available?
The tables above show typical C purlin sizes from 80 to 300 mm and Z purlin sizes from 140 to 300 mm high, 1.2 to 3.0 mm thick. Contact us to confirm the size you need.
Do you supply matching purlin accessories?
Yes. Purlin brackets, tie rods and anchor bolts are available to complete the purlin system.
What information should I send for a quotation?
Please send drawings or a BOQ with the material grade, thickness, coating, quantity and destination port.
Related Products
Send your drawings or BOQ with material, thickness, coating, quantity and destination port, and we will reply with a quotation.
