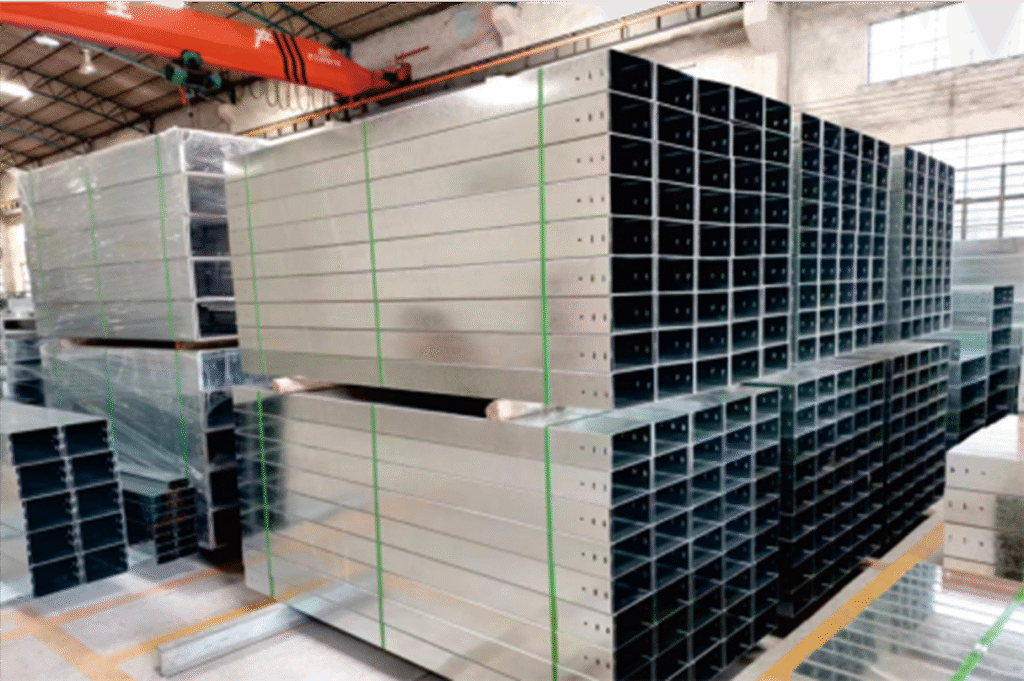

Galvanized Steel Cable Tray Manufacturer
Durable and corrosion-resistant cable tray systems designed for industrial and commercial electrical projects.
Steel Cable Tray Overview
The steel cable tray adopts advanced manufacturing technology and combines the strengths of similar products from both domestic and international markets. It features a simple structure, flexible design options, cost-effectiveness, and easy installation. These attributes make it one of the most widely used and versatile types of cable trays available today.
Customizable Options: Ladder-Type and Tray-Type Cable Trays
Ladder-type and tray-type cable trays can be supplied with covers, allowing customers to specify their requirements when placing an order or select the appropriate cover model. Accessories for both trough-type and ladder-type trays are interchangeable, which enhances convenience during selection and installation.
Surface Treatment Options
Surface treatments include electrostatic powder coating, galvanization, hot-dip galvanization, painting, and zinc-nickel plating. For highly corrosive environments, special anti-corrosion solutions such as composite coatings are also available.
Customization and Consultation
If the cable tray type or specification you require is not listed in our standard catalog, feel free to provide drawings, send inquiries, or visit our factory for direct consultation. We are committed to fulfilling every customer’s needs to the best of our ability.

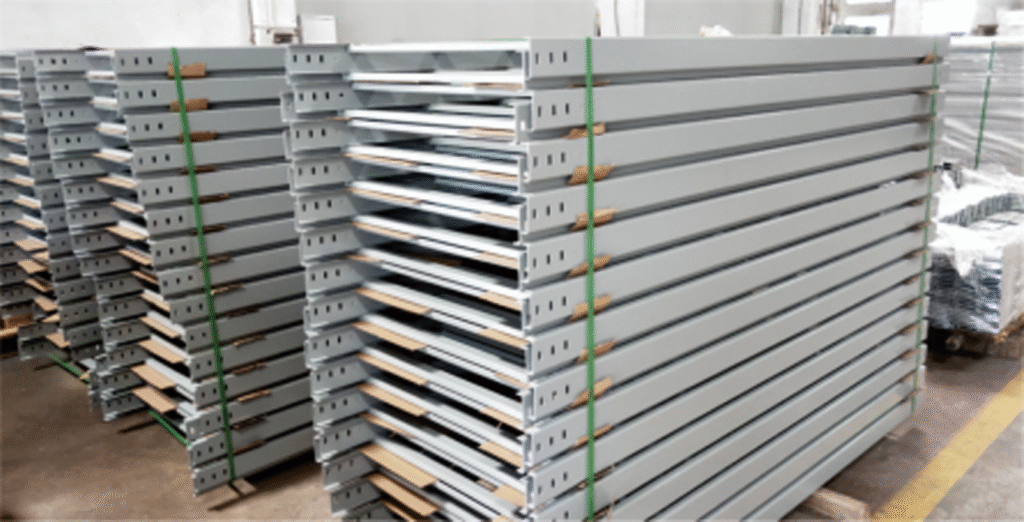

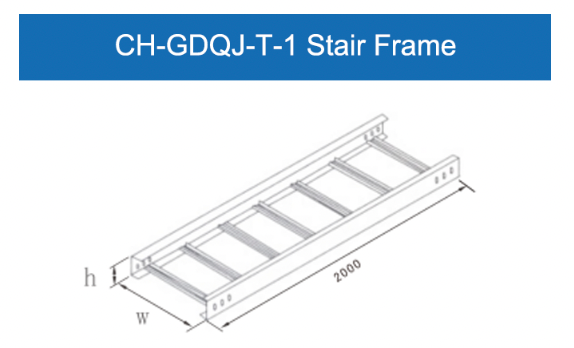

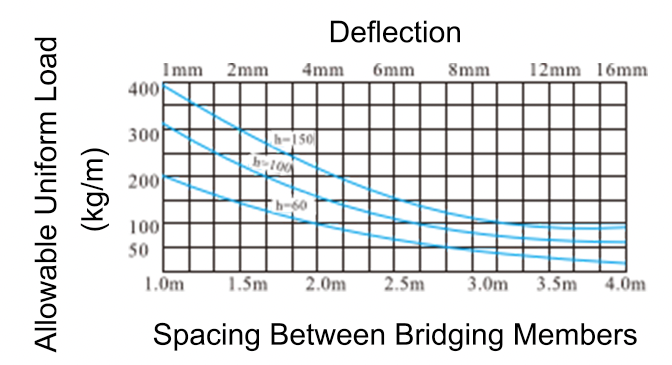

T-type ladder cable tray is designed and improved based on both domestic and international standards. It features a lightweight structure, low cost, and easy installation, making it an ideal choice for a wide range of electrical installations. Its excellent ventilation facilitates effective heat dissipation, which is essential for maintaining the performance and longevity of cables.
This type of cable tray is particularly suitable for laying large-diameter cables and is especially ideal for high- and low-voltage power cable installations. It ensures reliable and efficient cable management in various industrial, commercial, and power distribution applications.

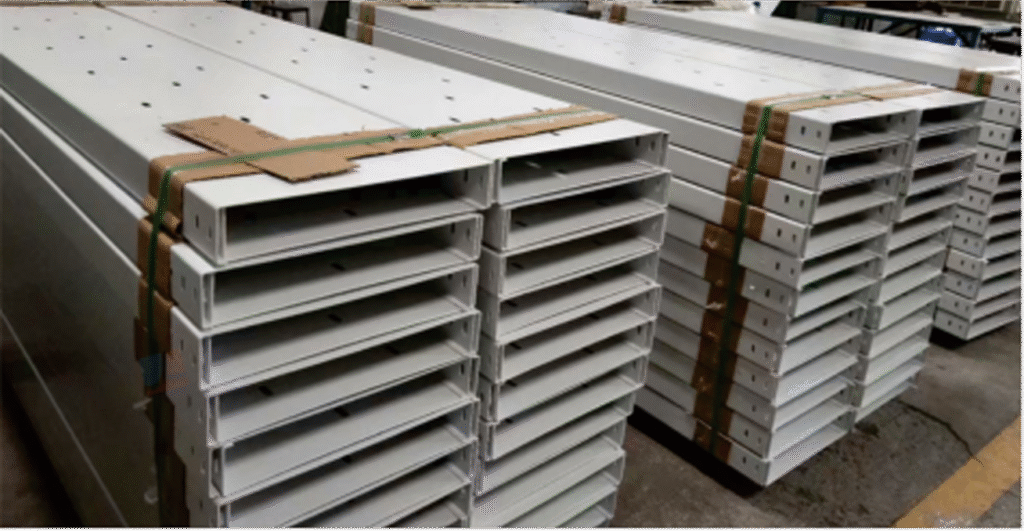

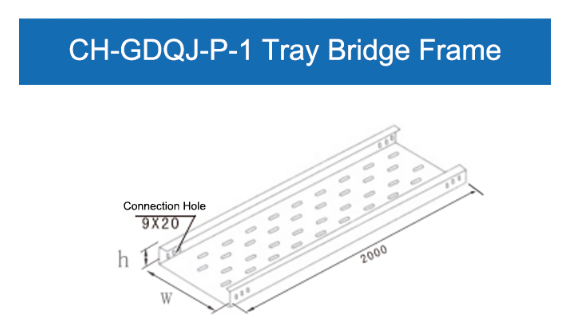

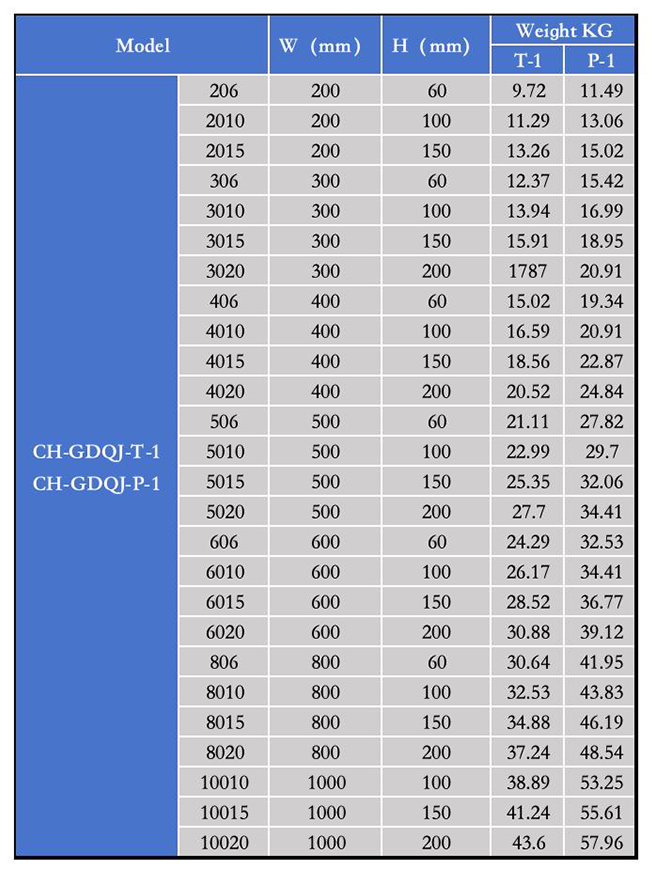

P-type tray cable tray is one of the most widely used cable trays in industries such as petroleum, chemical, power, light industry, television networks, and telecommunications. It features a lightweight design, high load capacity, attractive appearance, simple structure, and easy installation. It is suitable for both power cable installations and control cable layouts.

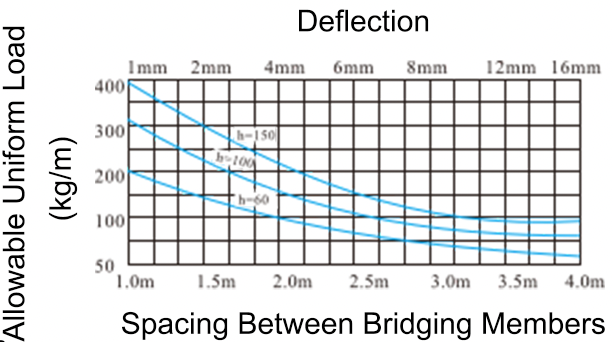

The maximum allowable uniform load and deflection of the P-type pallet cable tray at different spans are shown in the figure below:

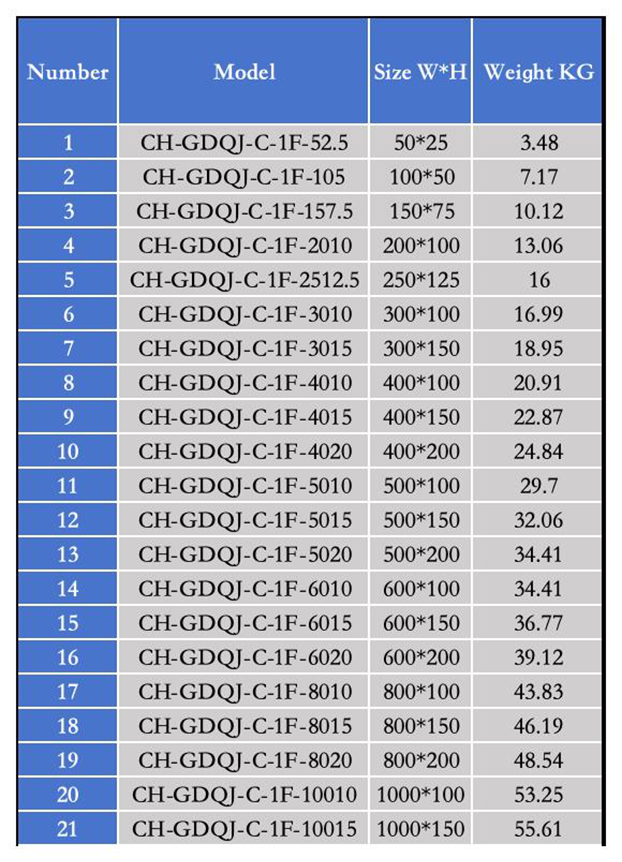

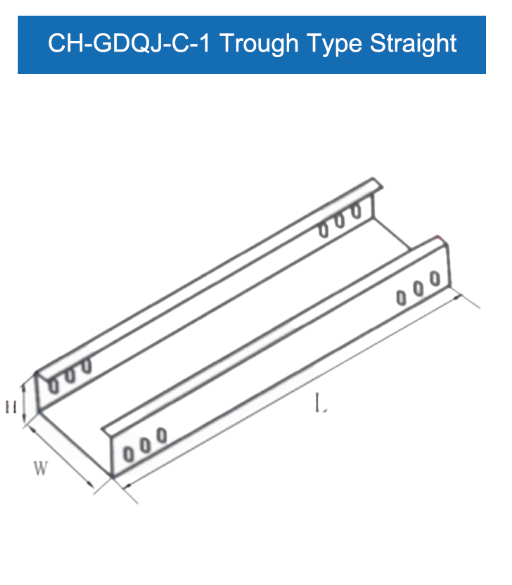

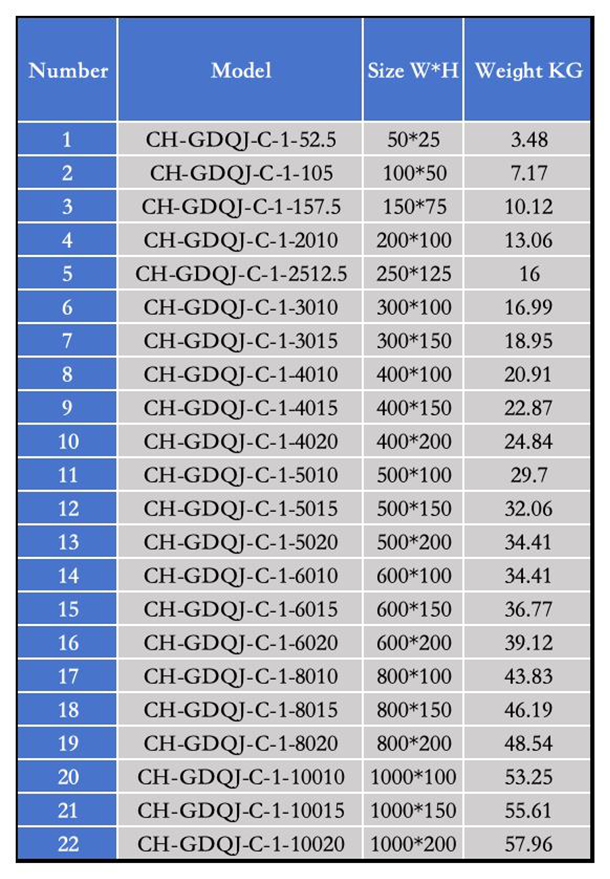

C-type trough cable tray is a fully enclosed design, ideally suited for laying computer cables, communication cables, thermocouple cables, and other sensitive control cables. It provides excellent shielding against interference for control cables and offers robust protection for cables in highly corrosive environments.

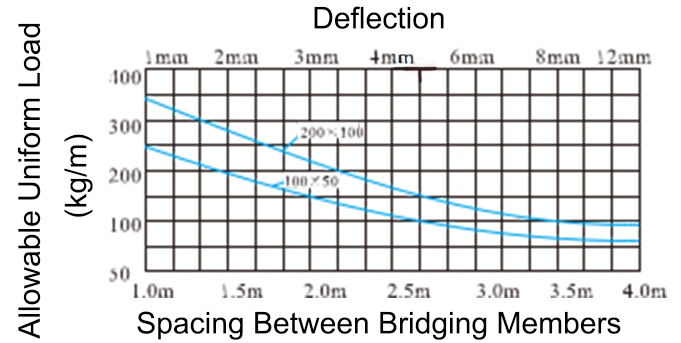

The maximum allowable uniform load and deflection of the C-Type Trough Cable Tray at different spans are shown in the figure below:
Applications
Industrial factories and manufacturing plants
Power plants and substations
Data centers and IT infrastructure
Commercial buildings and shopping malls
Solar PV and renewable energy projects
Advanced Manufacturing Facilities
Equipped with CNC bending machines, laser cutting systems, automatic punching lines, and robotic welding arms, we ensure high precision and consistent quality for all cable tray products.
Certifications & Quality Standards
Our galvanized steel cable trays comply with IEC 61537 and ISO 9001 standards, ensuring safety, durability, and global project compatibility.

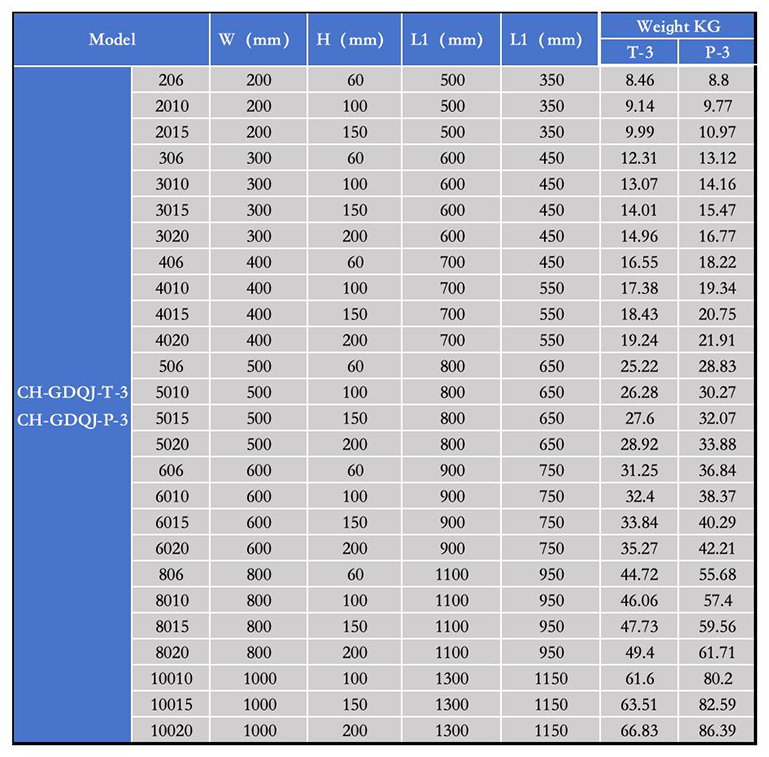

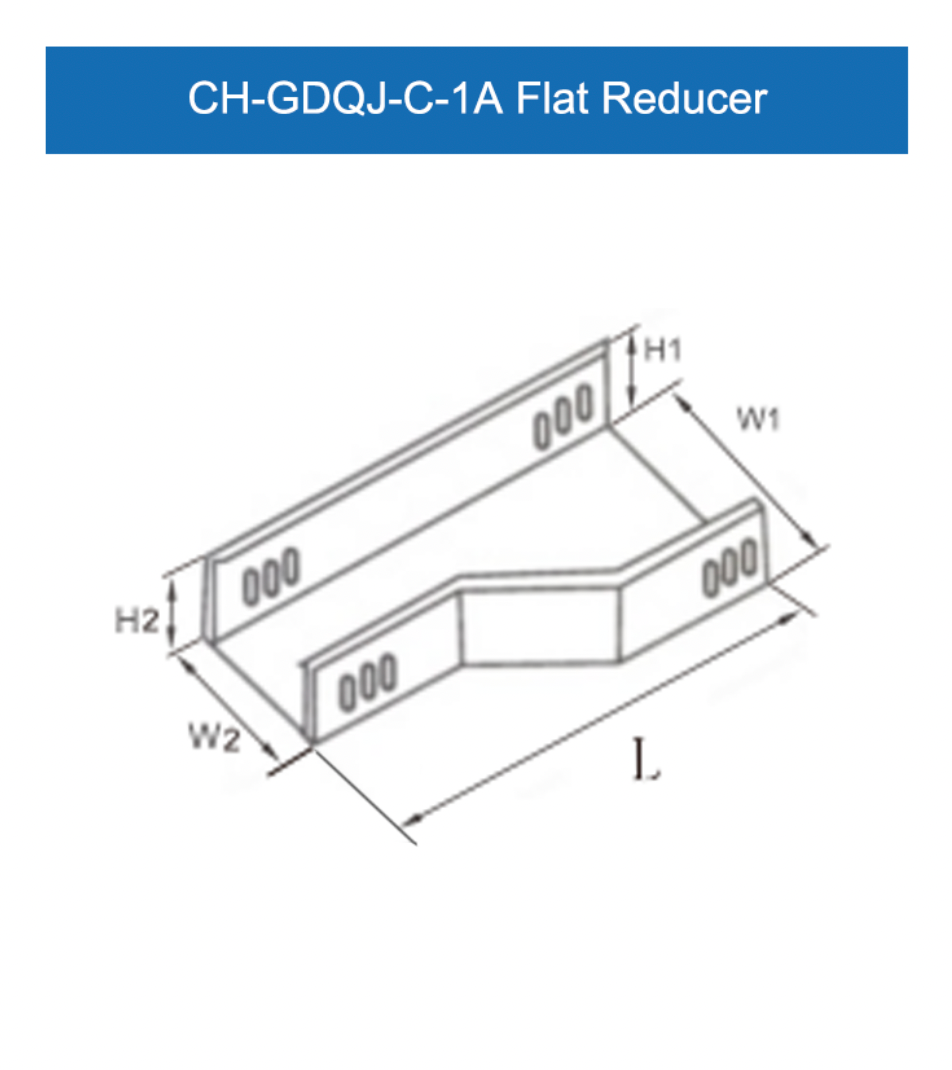

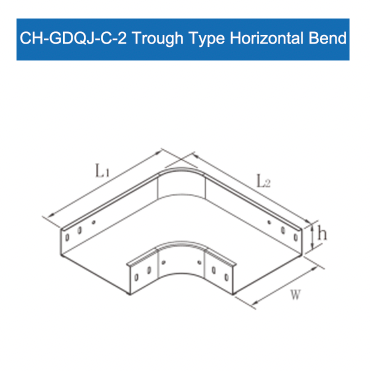

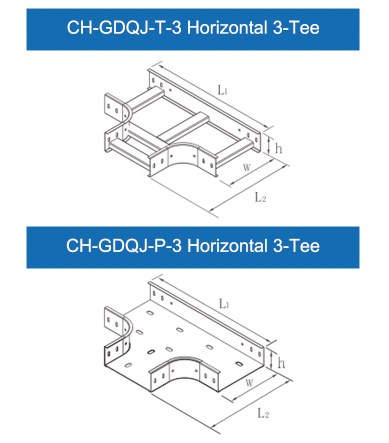

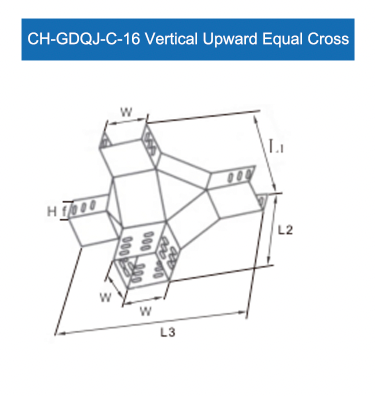

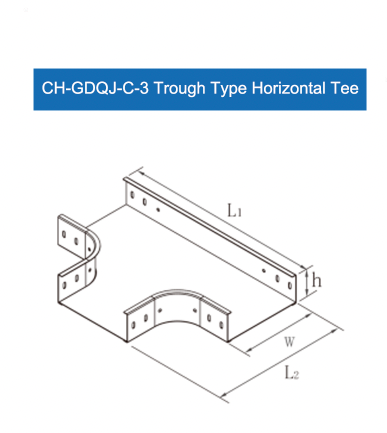

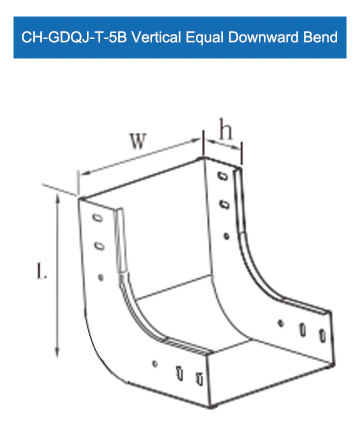

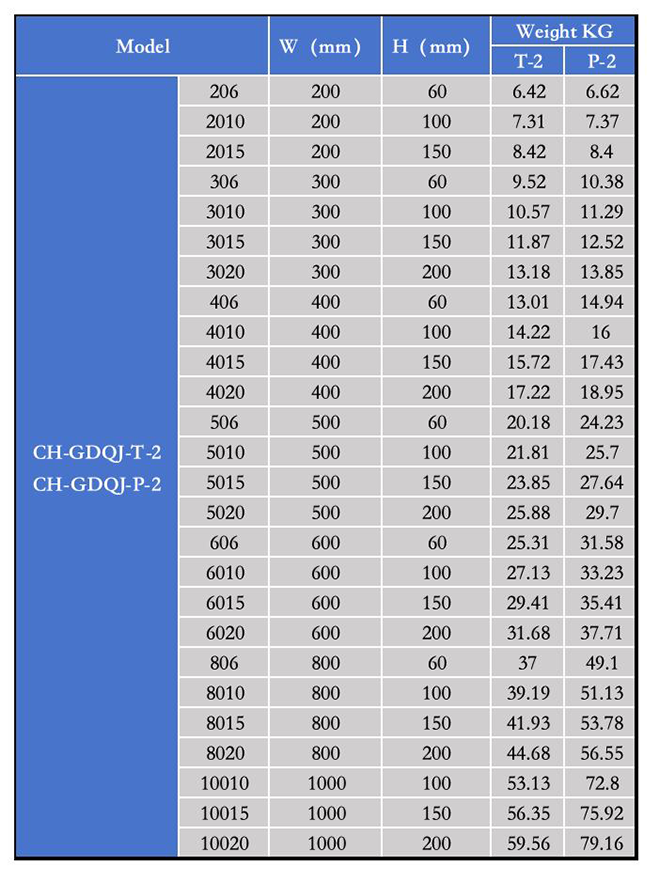

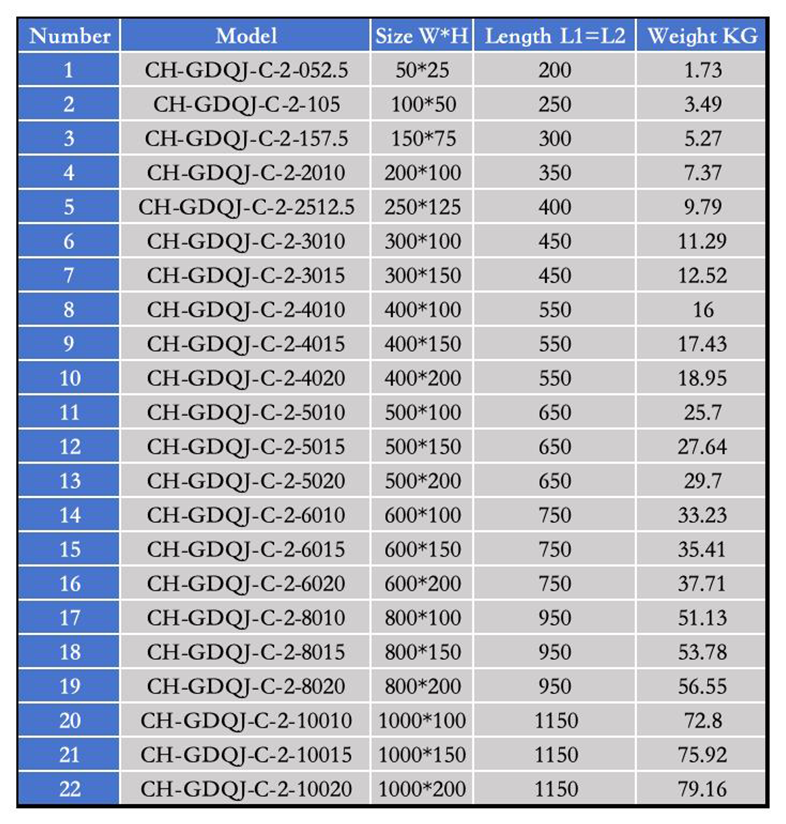

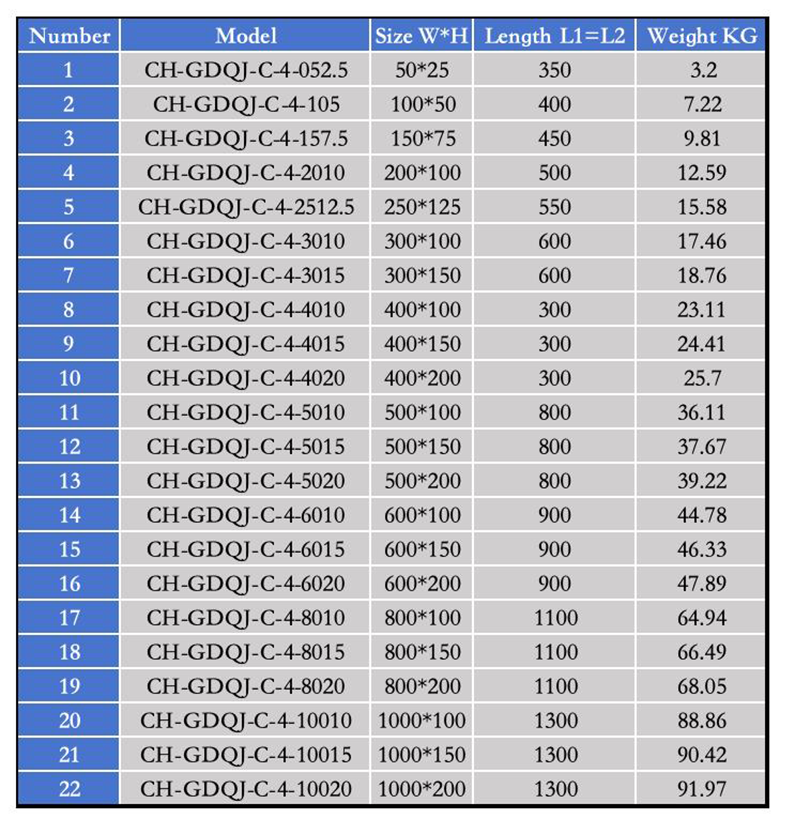

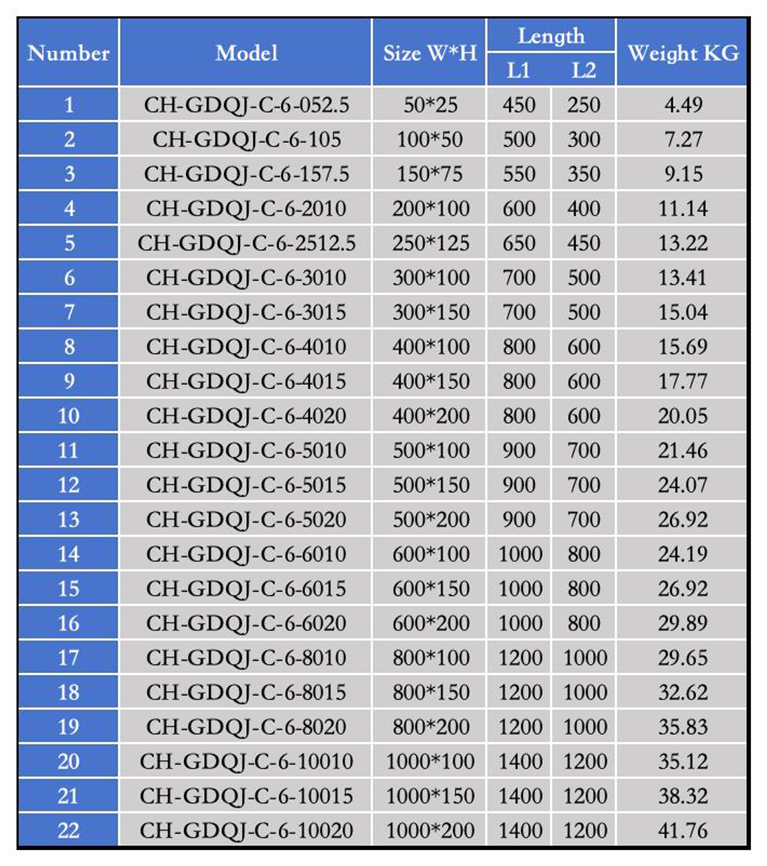

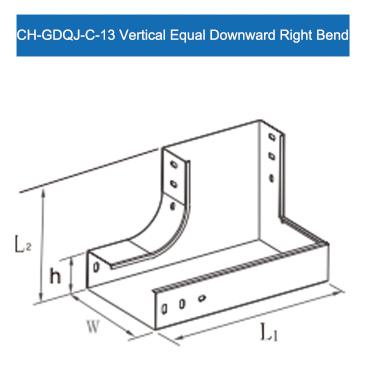

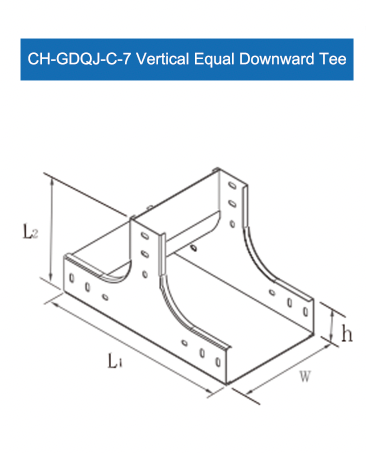

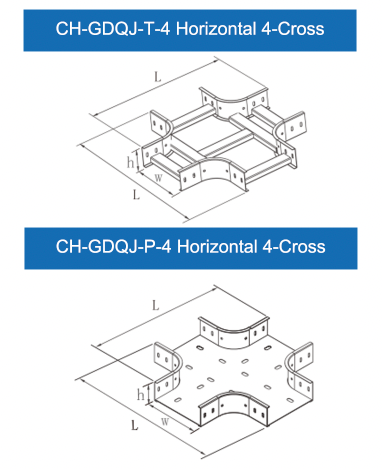

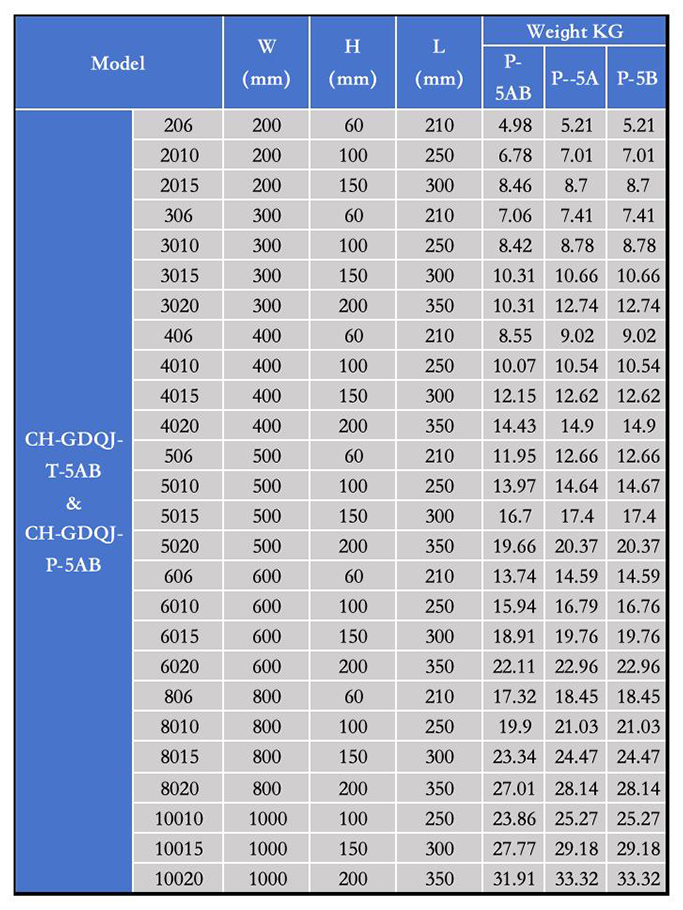

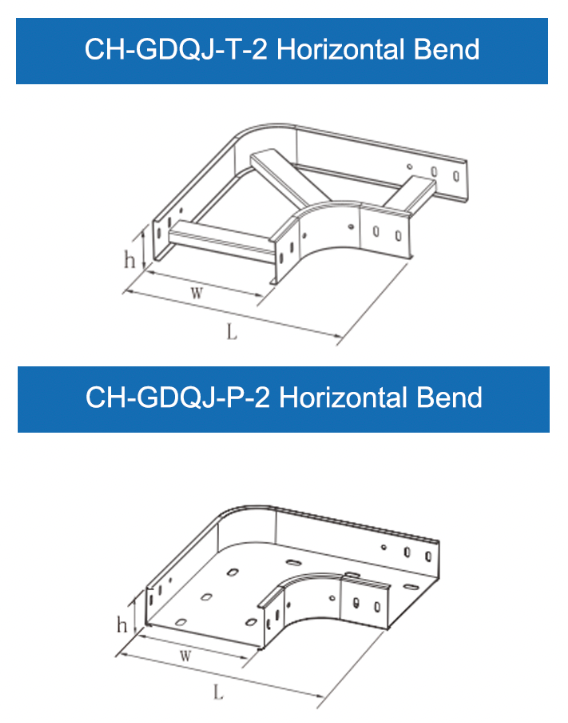

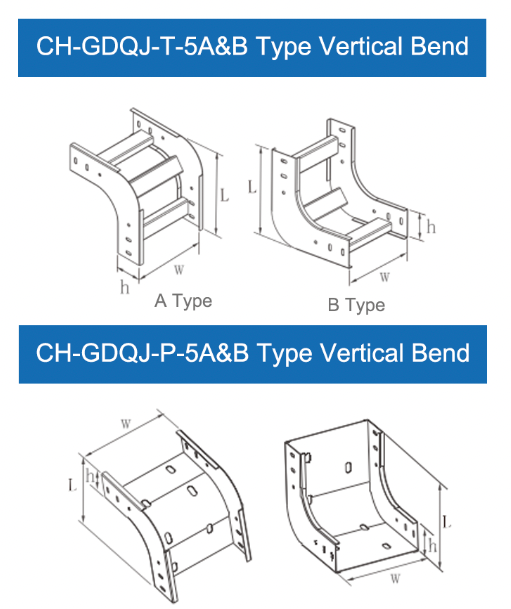

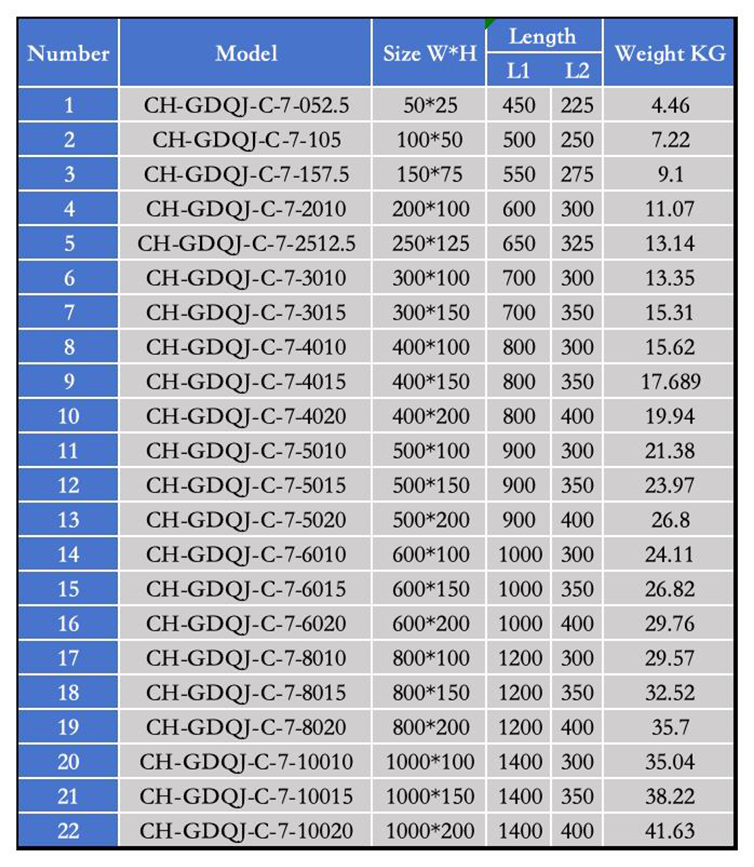

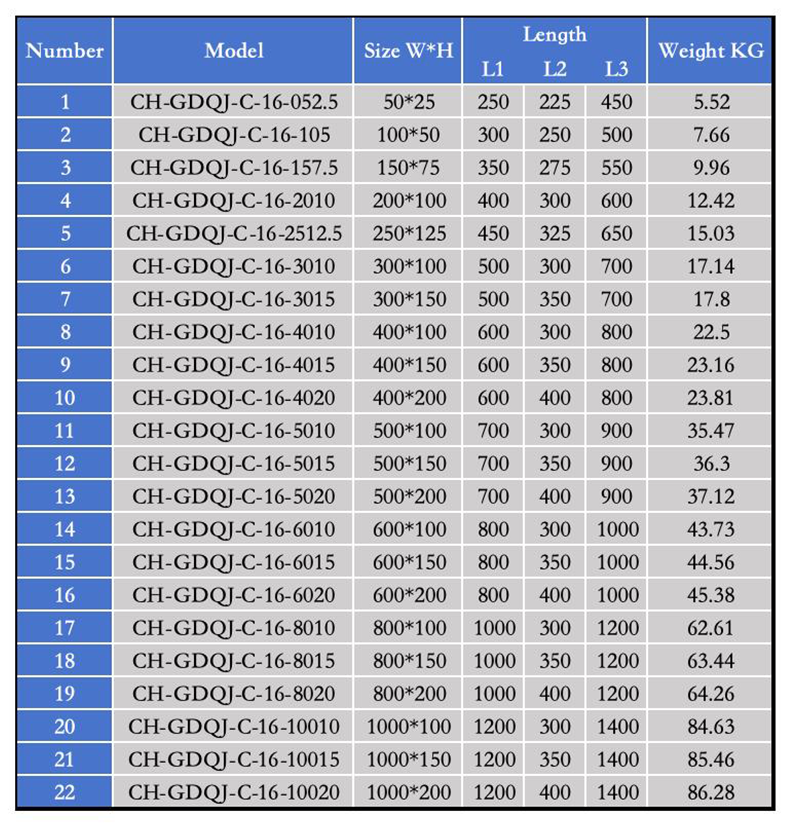

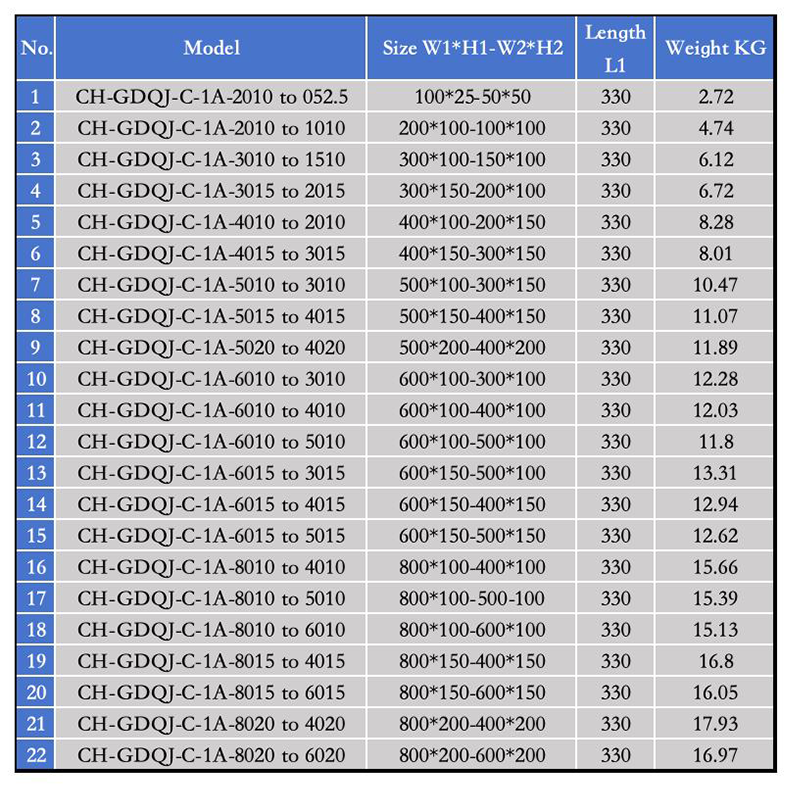

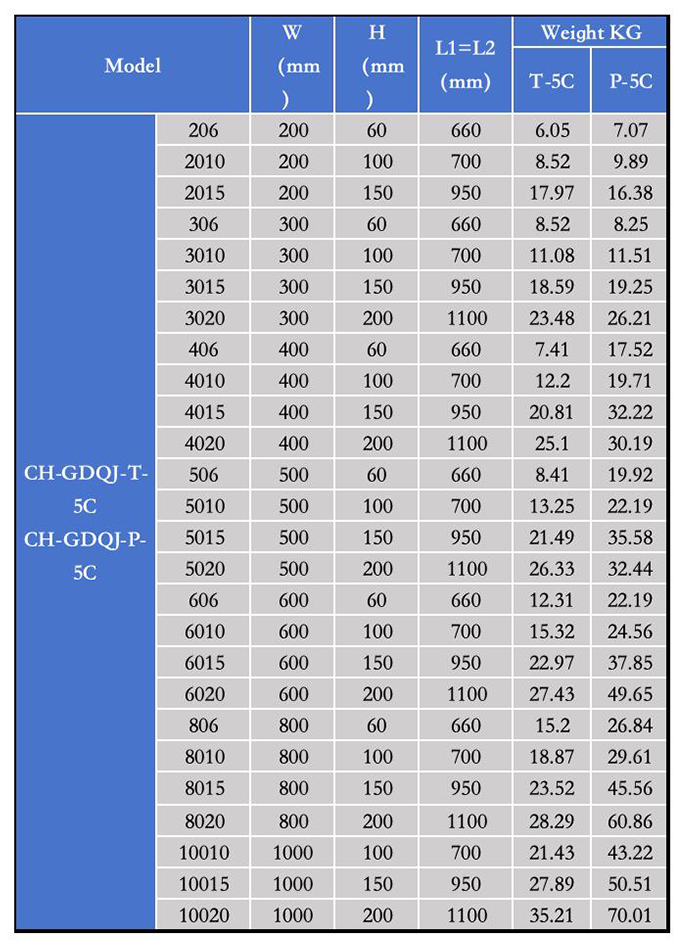

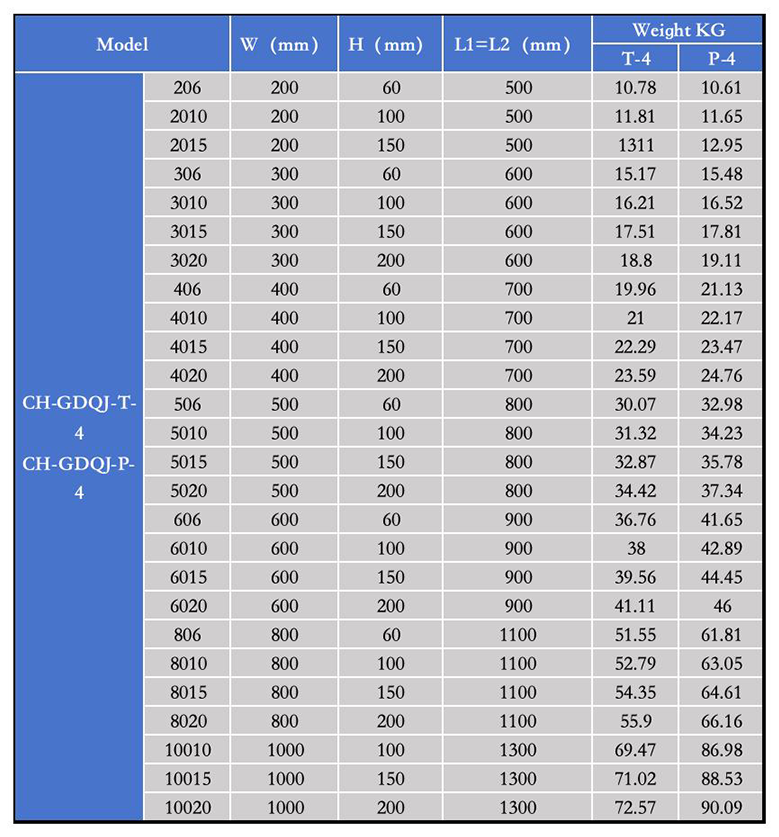

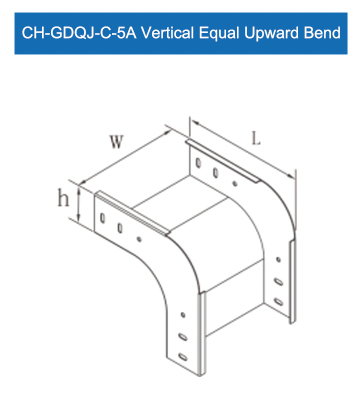

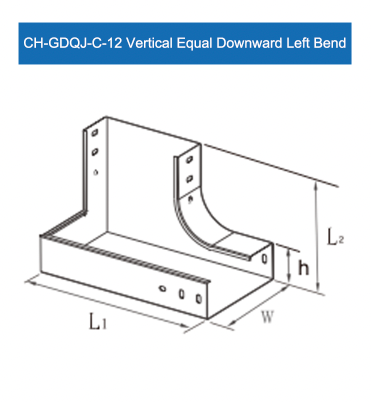

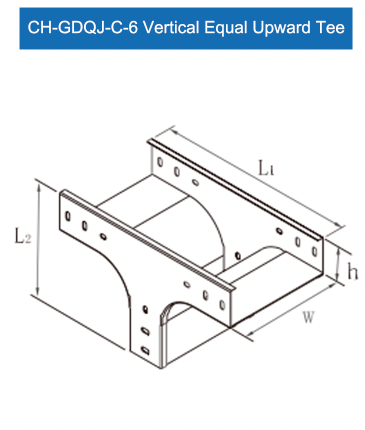

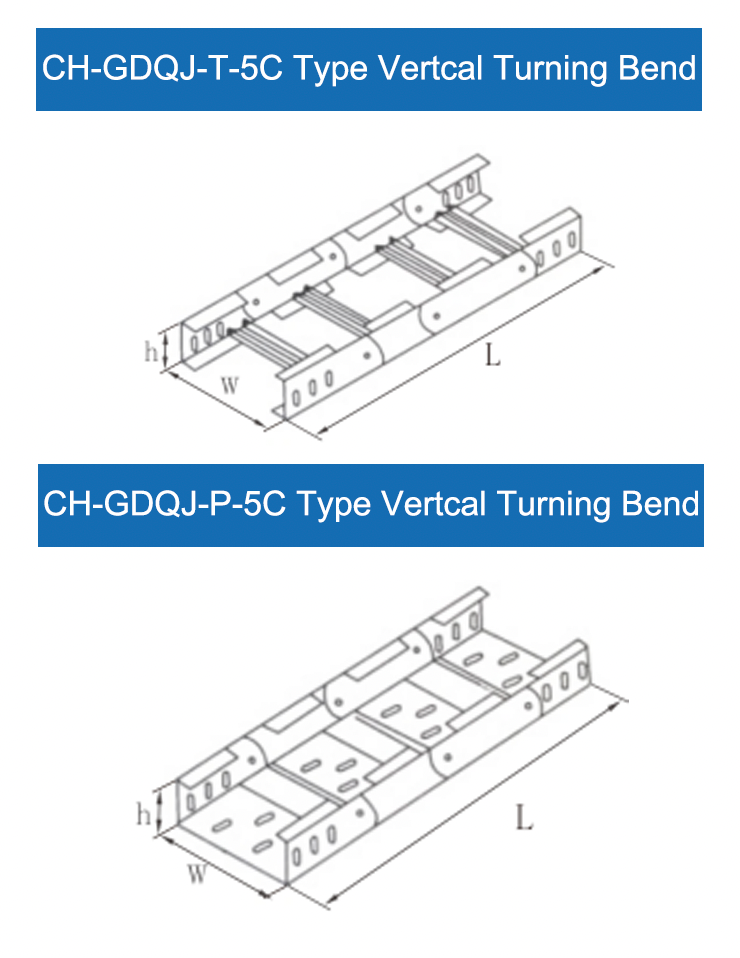

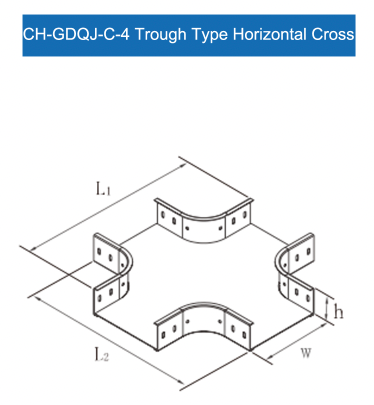

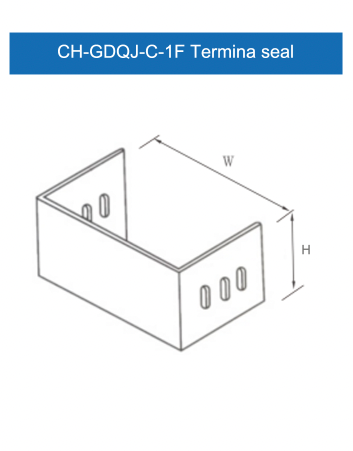

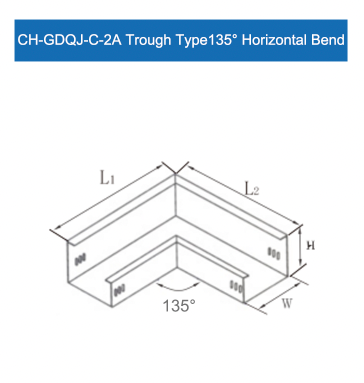

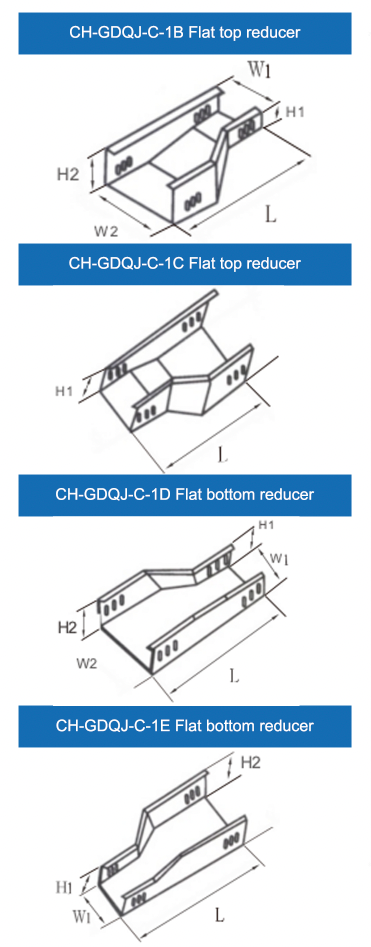

Steel Cable Tray Accessories
