Types of Cable Trays We Offer
Advantages of Self-Locking Reinforced Photovoltaic Cable Trays：
Tray covers use a press-fit buckle assembly without the need for connection bolts, making installation convenient. Side panels feature molded shapes that significantly increase load-bearing strength for added stability.
Cable tray covers can be welded with hanging tabs, and the tray body has welded locking points. Covers and trays are secured together using rotating locks, providing high strength, especially suitable for outdoor, high-wind environments.
The self-locking reinforced cable trays are available in channel, tray, and ladder types. Support spacing is customizable. For spans over 6 meters, special orders are accepted. Materials can be galvanized, Al-Zn-Mg, stainless steel, or aluminum alloy.

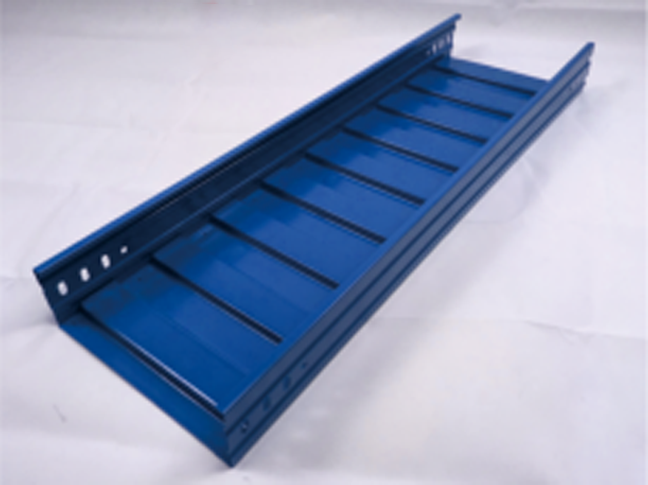

The lightweight energy-saving cable tray features advanced structural designs such as corrugated bases and reinforced stamped bottoms. These enhance load-bearing strength while reducing material consumption. At the same time, the increased surface area improves heat dissipation, optimizing the operating temperature of cables, reducing power loss, and achieving energy conservation and emission reduction.
Ladder-type and tray-type cable trays can be supplied with covers. Customers may specify the requirement when placing an order or order directly according to the cover model. Accessories for trough-type and ladder-type cable trays are interchangeable, providing greater convenience in selection and installation.

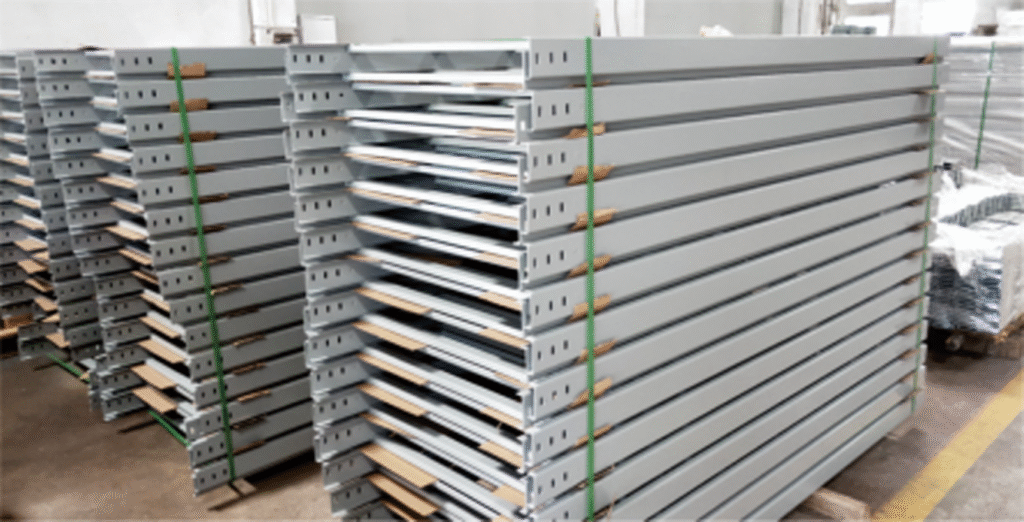

CH-T-type Ladder Cable Tray

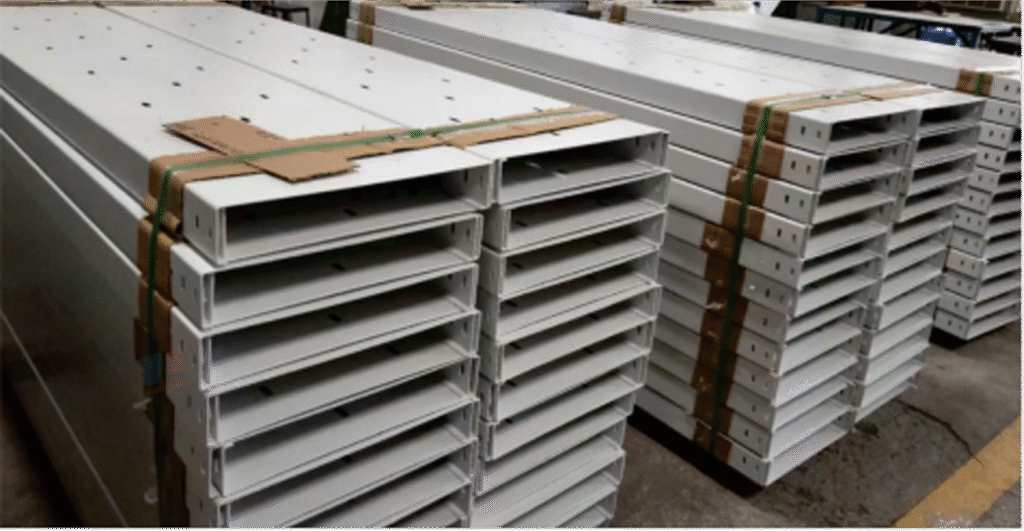

CH-P-type Pallet Cable Tray

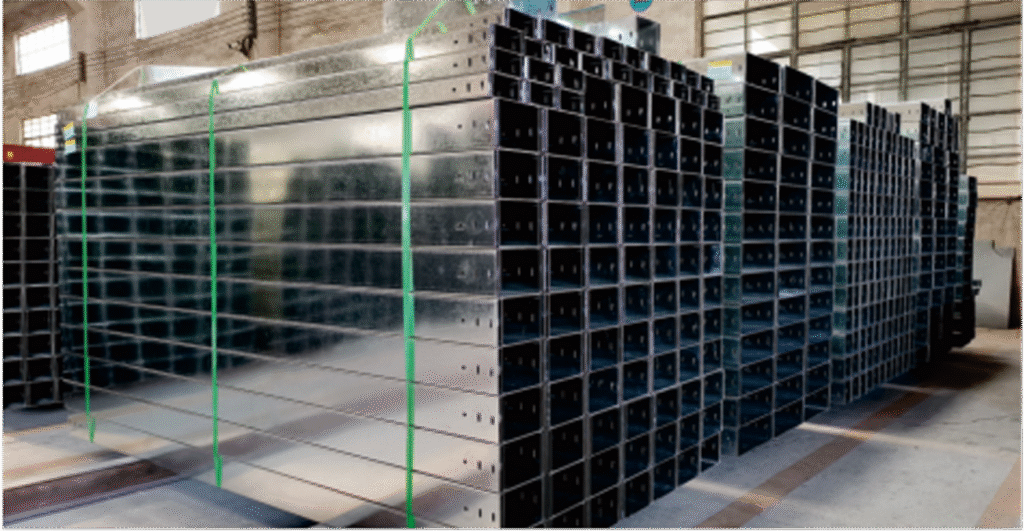

C-Type Trough Cable Tray
The large-span cable tray is specifically designed to provide greater support span and higher load- bearing capacity compared to conventional cable trays. Its advanced structural design ensures excellent strength, stability, and reliability in demanding applications.

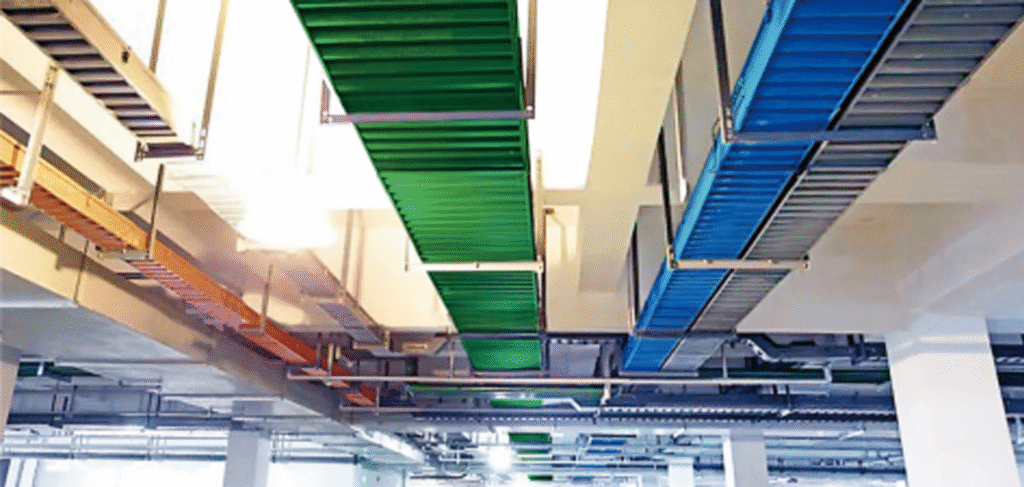

This type of cable tray is widely used in oil refining, chemical, machinery, textile, metallurgy, electric power, power grid, and broadcasting industries for both indoor and outdoor overhead cable installations. In addition, it is also ideal for cable laying in subways, air-defense projects, and other underground engineering works.
Our Aluminum Alloy Cable Tray is developed in-house with reference to the NEMA VE1-1979 Cable Tray Systems standard. Designed with simplicity and durability in mind, it offers outstanding corrosion resistance, long service life, and easy installation with virtually no maintenance required.
Thanks to its excellent material properties, this tray is well-suited for a wide range of environments. It performs exceptionally in coastal salt-mist areas, as well as in high-temperature, high-humidity, and highly corrosive conditions, showcasing superior resistance and reliability.

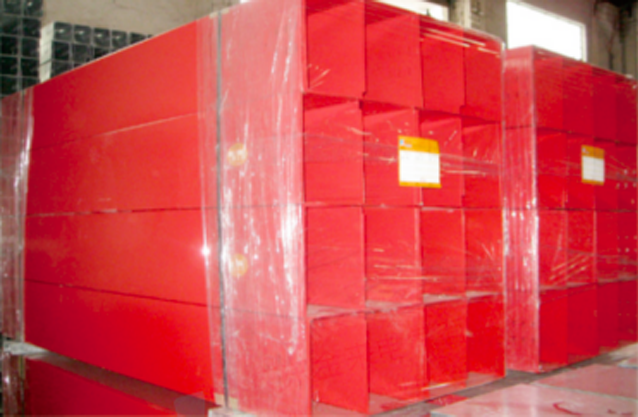

FQJ&WBJ SERIES CABLE TRAY

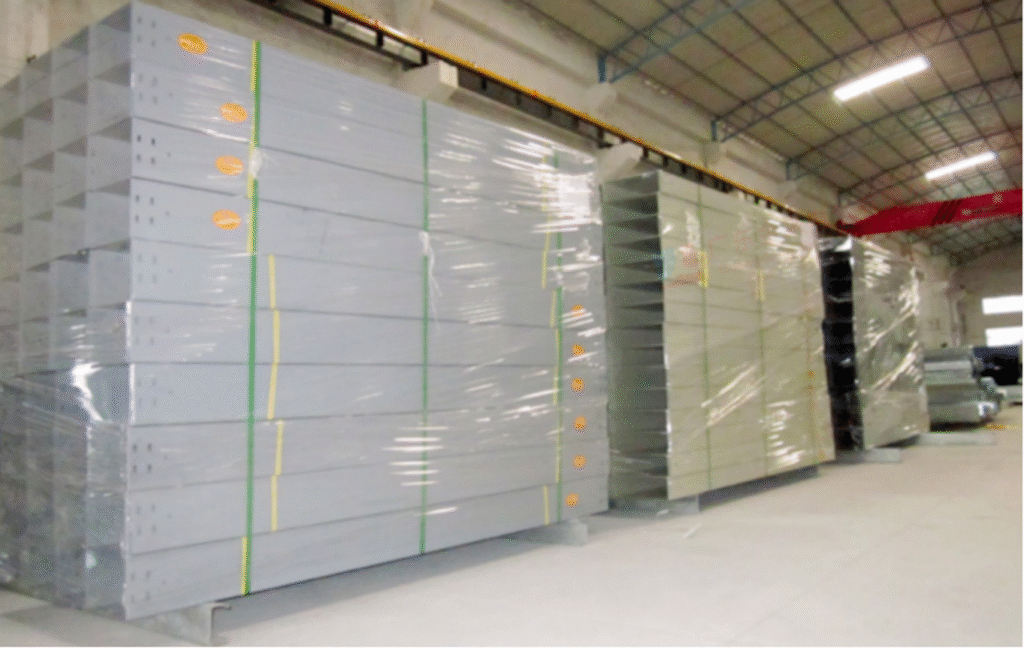

The WBJ Series Fire-Resistant Cable Tray is a newly developed product by our company, designed to meet fire and flame-retardant requirements. Lightweight yet highly durable, it offers reliable safety and easy installation. Widely applicable in chemical, petroleum, metallurgy, and other environments with fire protection requirements, it provides significant economic benefits for users.
FQJ&WBJ SERIES CABLE TRAY
The WBJ Series Fire-Resistant Cable Tray is a newly developed product by our company, designed to meet fire and flame-retardant requirements. Lightweight yet highly durable, it offers reliable safety and easy installation. Widely applicable in chemical, petroleum, metallurgy, and other environments with fire protection requirements, it provides significant economic benefits for users.

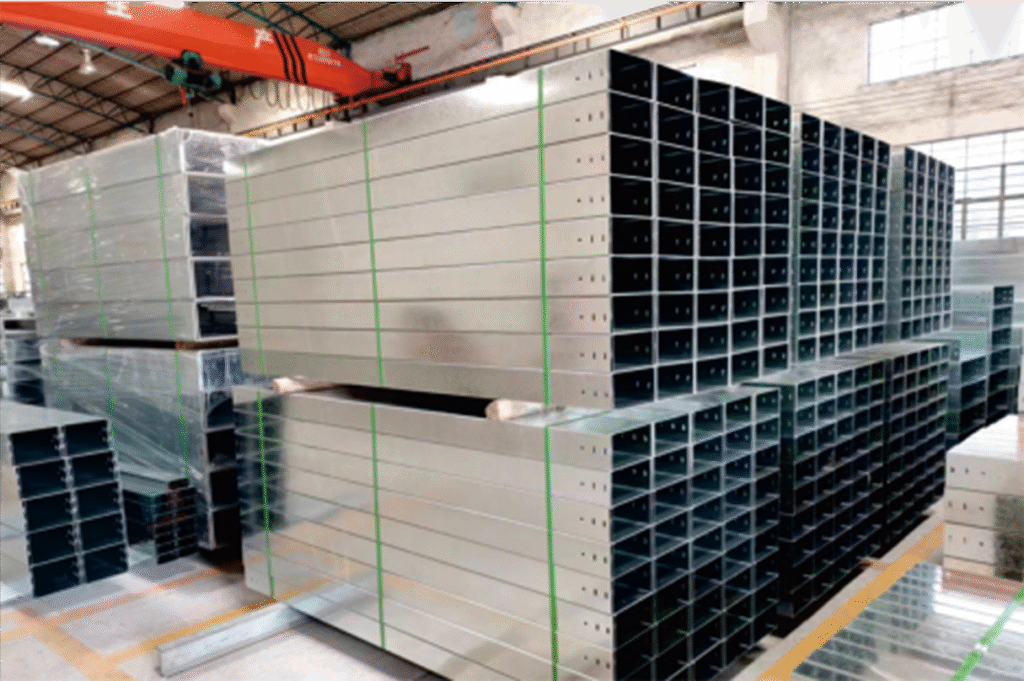

CH-ARC-SHAPED STEEL CABLE TRAY
Our curved steel cable tray is independently designed and manufactured by our company in accordance with the NEMA VE1 standard, developed to meet market demands. This product ensures effective protection of cables during installation, preventing damage while providing an aesthetically pleasing appearance.

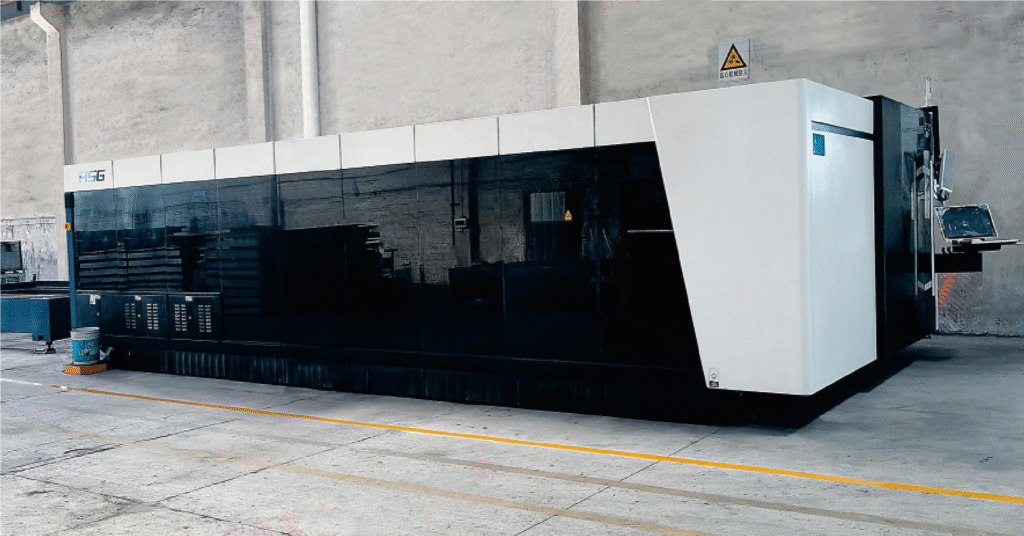

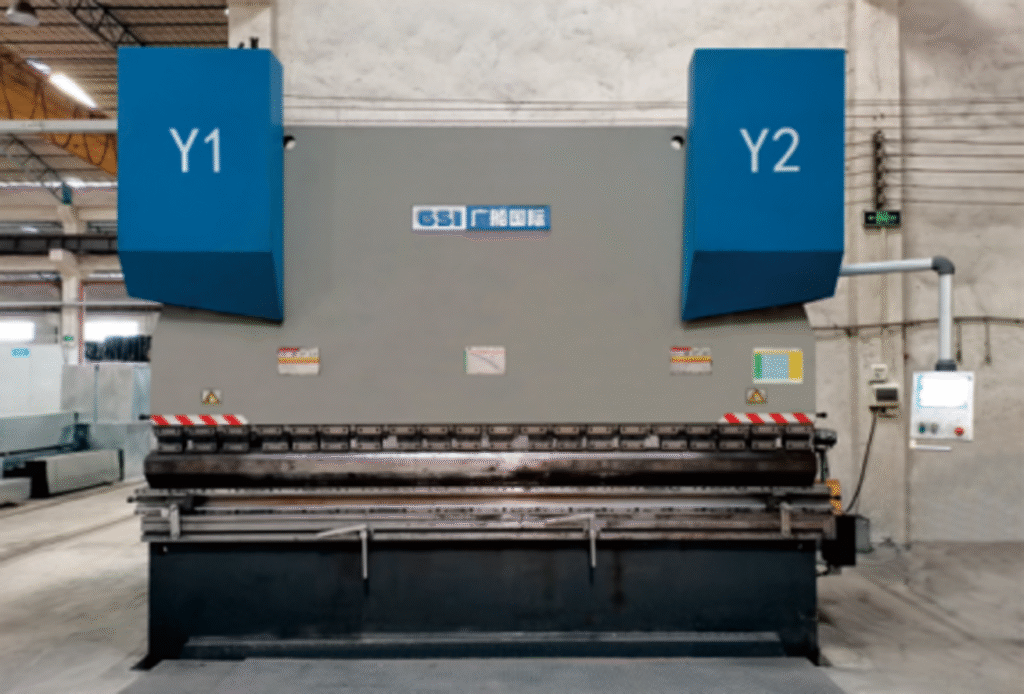

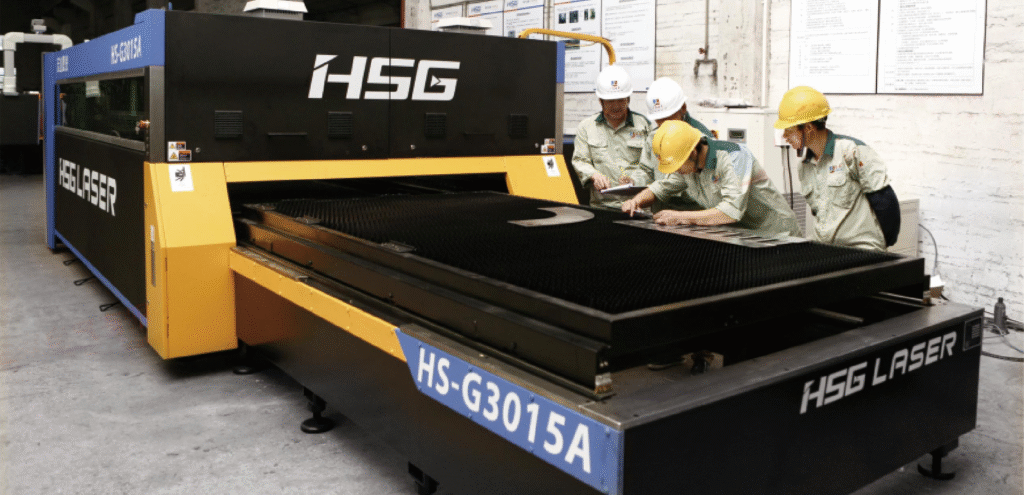

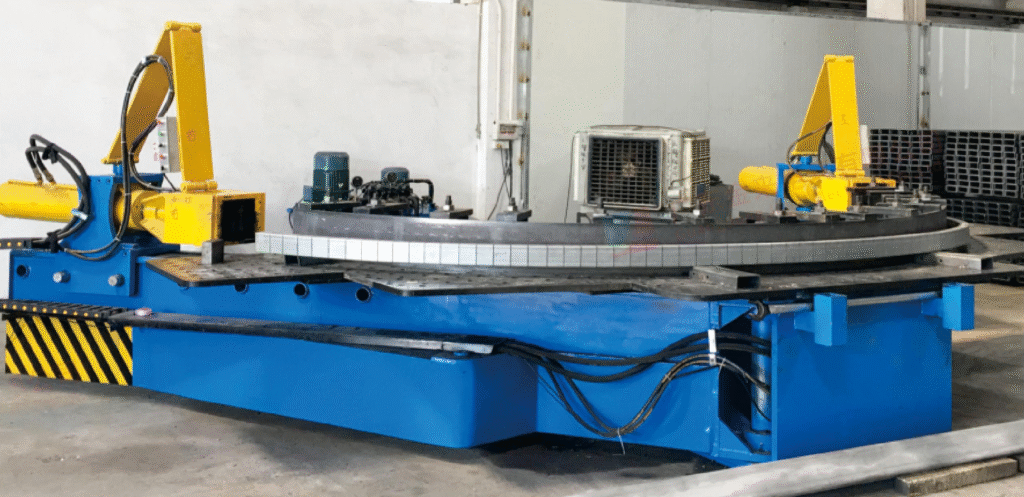

Advanced Manufacturing Equipment

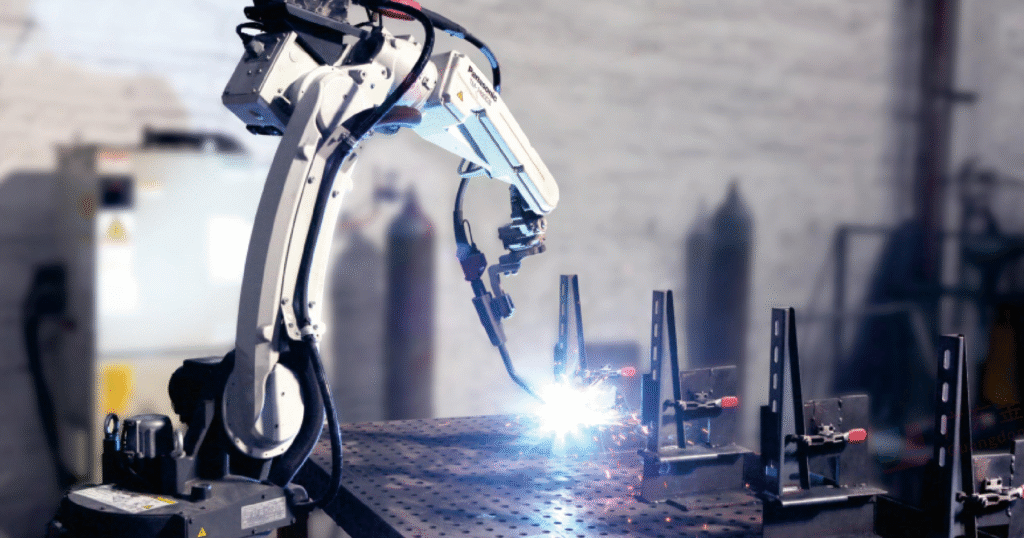

Equipped with CNC bending machines, laser cutting systems, and robotic welding arms, we ensure high precision and consistent quality in every cable tray.

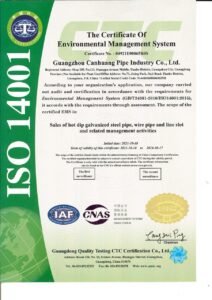

Certifications & Quality Assurance
Our products meet international standards, including IEC 61537 and ISO 9001, ensuring safety, durability, and compliance for global projects.
